Working Principle:

When materials pass through this equipment, they are diverted to the magnetic field coverage area of the pipeline iron remover by the diversion plate at the center of the iron remover. Ferromagnetic substances are adsorbed on the inner wall of the pipeline. To remove the ferromagnetic substances, simply open the side door and take them out.

Technical Features:

1、High-performance strong magnetic material neodymium-iron-boron is used as the magnetic source, which features high temperature resistance, stable performance and low likelihood of demagnetization.

2、The unique magnetic circuit design with a double-magnetic structure significantly enhances the magnetic field intensity in the material-passing magnetic field area, and the suction force is 2-3 times that of ordinary pipeline iron removers.

3、The pipeline adopts a fully sealed mechanism, and the iron remover is installed externally, avoiding damage to the iron remover caused by long-term use.

4、It has the advantages of small volume, light weight and vertical installation, enabling convenient iron removal.

5、Customized design is available according to the user's on-site conditions.

Application Scope:

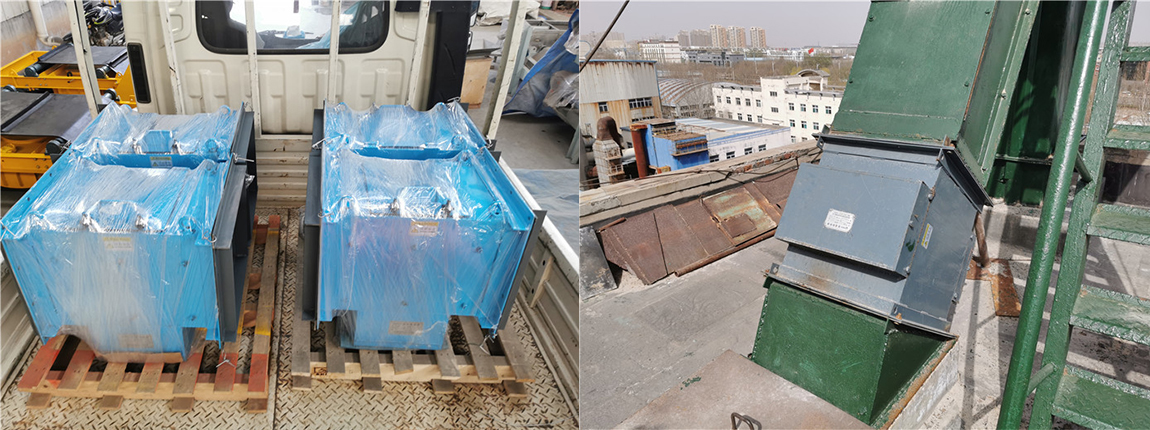

It is suitable for iron removal from powdery, granular and lumpy materials in industries such as cement, building materials, chemical engineering, grain, plastics, coal and refractory materials. It can be connected to conveying pipelines and installed vertically for use.

Main Technical Parameters
