Product Overview
The RCDB Series Dry-Type Electromagnetic Iron Remover (also known as the PDC Series Disc-Type and RCDY Series) is an iron-removing device used to eliminate iron impurities from powdery or lumpy non-magnetic materials. Its interior adopts electrical engineering-specific resin casting and a self-cooling fully sealed structure. It features deep magnetic penetration, strong suction force, dust resistance, rain resistance, corrosion resistance, and can operate reliably even in extremely harsh environments.
All its main performance indicators meet or exceed the requirements of the JB/T7689-95 standard. This product can remove ferromagnetic substances weighing 0.1-35 kg mixed in non-magnetic materials.
Main Technical Parameters

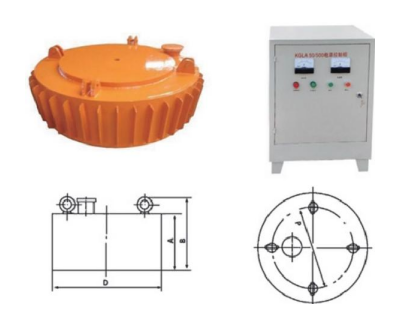

Parameter Item Model | Adaptive Bandwidth mm | Rated Lifting Height h ≤mm | Magnetic Field Strength ≥mT | Material Thickness ≥mm | Excitation Power ≤kw | Weight kg | Adaptive Belt Speed ≤m/s | Overall Dimensions mm | |||
A | B | D中 | dφ | ||||||||
RCDB-3 | 300 | 75 | 50 | 50 | 0.4 | 185 |
4.5 | 210 | 250 | 400 | 280 |
RCDB-4 | 400 | 100 | 50 | 70 | 0.6 | 300 | 240 | 280 | 500 | 400 | |
RCDB-5 | 500 | 150 | 60 | 90 | 1 | 430 | 280 | 325 | 610 | 450 | |
RCDB-6 | 600 | 175 | 60 | 120 | 1.6 | 580 | 280 | 325 | 710 | 500 | |
RCDB-6.5 | 650 | 200 | 70 | 150 | 2 | 680 | 280 | 325 | 816 | 640 | |
RCDB-8 | 800 | 250 | 70 | 200 | 3.6 | 950 | 310 | 355 | 960 | 780 | |
RCDB-10 | 1000 | 300 | 70 | 250 | 5 | 1520 | 310 | 360 | 1200 | 920 | |
RCDB-12 | 1200 | 350 | 70 | 300 | 6.8 | 2250 | 310 | 365 | 1400 | 1000 | |
RCDB-14 | 1400 | 400 | 70 | 350 | 9 | 2950 | 405 | 485 | 1650 | 1400 | |
RCDB-16 | 1600 | 450 | 70 | 400 | 13 | 4800 | 460 | 540 | 1900 | 1650 | |
RCDB-18 | 1800 | 500 | 70 | 450 | 18 | 6900 | 530 | 610 | 2150 | 1800 | |
