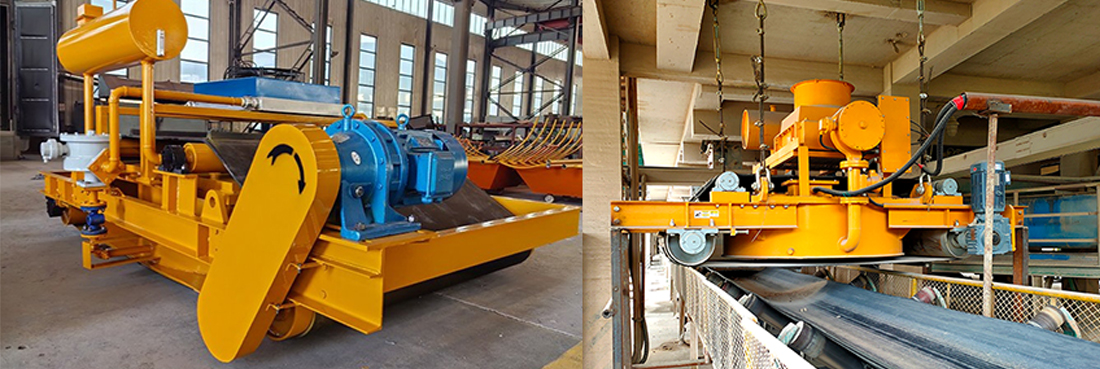

RCDFJ Forced Oil-Cooled Electromagnetic Iron Remover

Scope of Application:

It is used for removing iron from any materials before crushers and on conveyor belts, and can be applied to various harsh environmental conditions.

Product Features:

It completely solves the three major problems of heat dissipation, suction force and environmental adaptability existing in ordinary iron removers.

Technical Features:

◆ The magnetic circuit is designed with computer simulation, providing a large magnetic penetration depth and strong magnetic force.

◆ The excitation coil features a special design with both longitudinal and transverse oil channels, facilitating efficient heat transfer to the transformer oil and effectively reducing coil temperature.

◆ The coil is impregnated and cured with special epoxy resin, enhancing the overall insulation performance. The fully sealed structure provides dust, rain, and corrosion resistance.

◆ A circulation oil pipeline forms the heat dissipation channel, significantly increasing the cooling area and effectively controlling temperature rise.

◆ Automatic iron discharge with simple maintenance. The drum features a waist-drum shape with automatic belt tracking capability. Special fully sealed bearing housings ensure long-term trouble-free operation.

◆ Excellent product compatibility with comprehensive rectifier equipment featuring both manual and centralized control functions, meeting various application requirements.

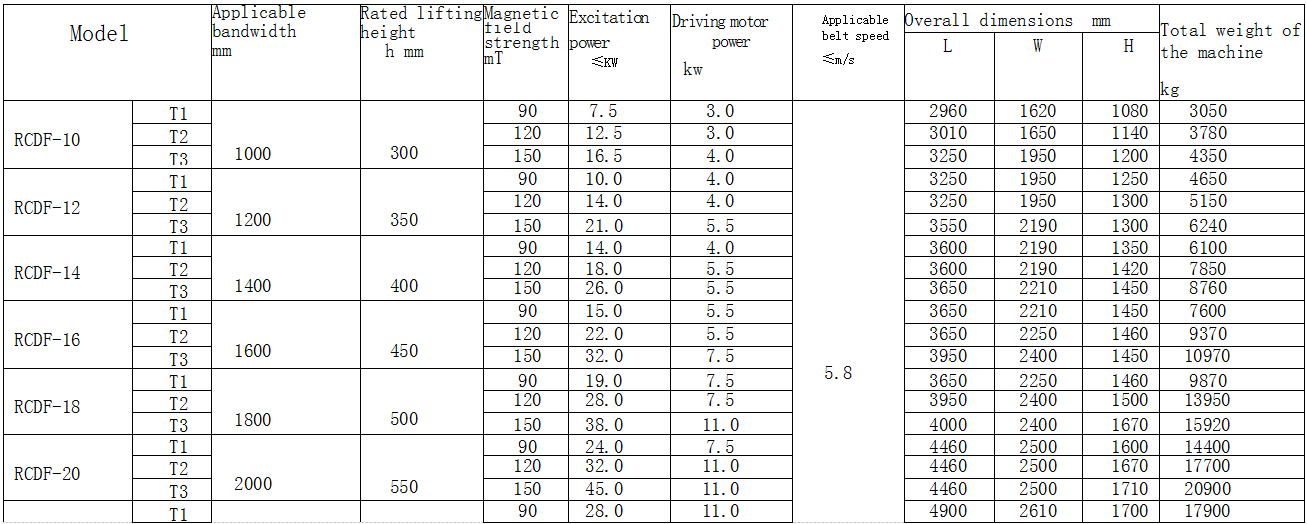

RCDF Standard Series:

RCDF-□T Super-Strength Series:
